A Pair of Bluetooth Transceiver Modules

What is it

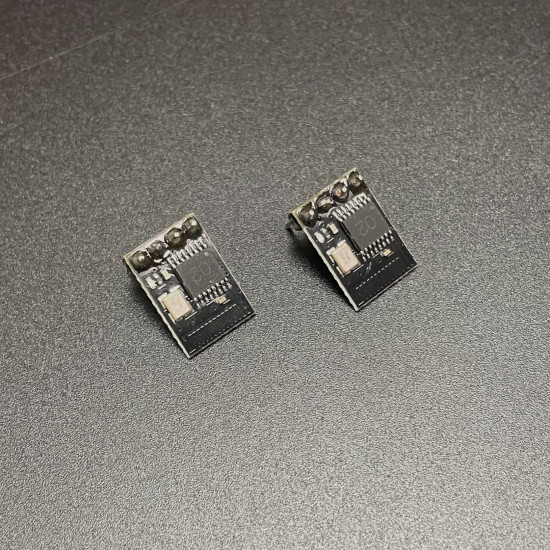

Bluetooth Modules x 2

What is it

A Pair of Bluetooth Transceiver Modules

How to use

Connect：

Step 1: Connect via USB-to-serial module

Step 2: Open serial terminal software

Step 3: Select the correct COM port and connect

Pair

**1. Take out one module, query and record its MAC address.**

   **Use command:** `AT+MAC?`

   **Example response:** `+MAC:EC230915AA4D`

   *This device is temporarily set as a **Slave** (it remains as Slave by default if not changed).*

Downlaod:https://www.pibot.com/dls/pendantv4/ToolsUart.zip

**2. Take out the other module.**

   **Use command:** `AT+ROLE=1` to set it as **Master**.

   **Use command to bind to the Slave's MAC address:** `AT+BONDMAC=EC230915AA4D`

**3. Install the Slave module on the pendant and the Master module on the mainboard. Setup complete.**

After successful pairing and power-on, the blue indicator light will transition from slow blinking to rapid blinking .
