What is it
This is a simple way to add a relay to your micro controller or CNC controller. power range from 4.5V to 40V
The circuit is optically isolated from the relay, so your controller is protected from voltage spikes and surges.
It does this by shining light across a gap to a sensor. No electrically conductive items cross this gap.
This is a great way to add things like spindle power control to your CNC project or have an Arduino control high power devices.
How it works

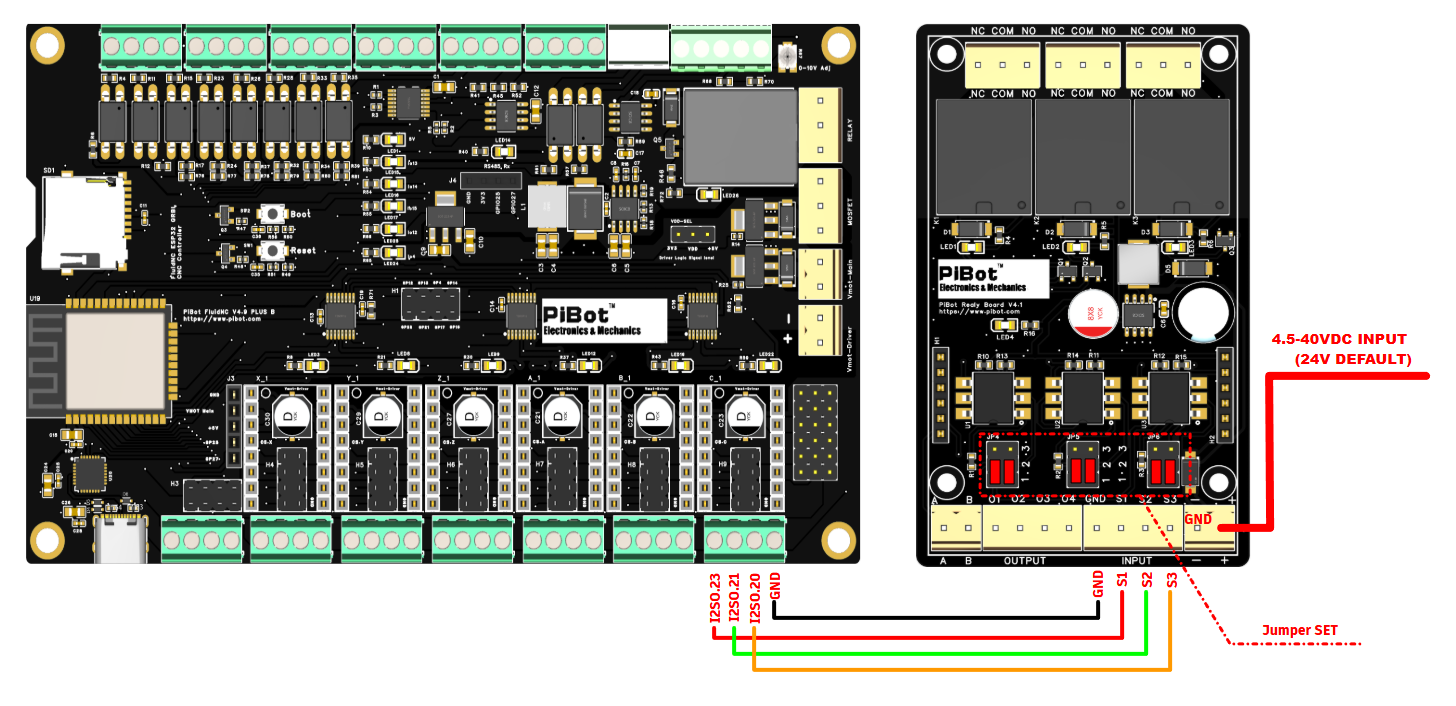

Connect
coolant:
flood_pin: I2SO.23
mist_pin: I2SO.21
delay_ms: 0
Overview
Size
Documents
Specification
- Relay Type: SRD-05VDC-SL-C
- Operation: 10A 250/125VAC or 10A 30/28VDC
- Optocoupler Type: 470KHz isolate optocoupler(4N35)
- Logic Voltage: 5v or 3.3V signal Isolate input and 5v directly one
- Number of Relay: 3
- Dimensions: 85mm × 50mm × 20mm
- Hole Diameter: 3mm
- Board Mounter Hole: 61mm × 43mm
Shipping List
- PiBot Isolated Relay Rev4 × 1
