PiBot FluidNC ESP32 GRBL Laser CNC Controller V4.96 Pro

What is New

Thank you for your support. The V4.9PB version is now sold out. We have currently updated to the 4.96 Pro version, which is compatible with V4.9PB. We have implemented numerous optimizations and upgrades, such as adopting a four-layer PCB design, optimizing SPI signals, adding 22 LED lights for input and output display, and adding support for high-precision, high-voltage limit switches.

All orders will be shipped with the new version. Additionally, our tutorials are constantly being updated. Most configurations of the V4.96 Pro are compatible with the V4.9PB, so you can refer to the V4.9PB settings for now.

How to Identify New Version

A：The version are silkscreened with "PiBot FluidNC V4.96 Pro".

B：There are two 3-pin jumpers for selecting the "Driver Logic Signal Level" and "SW_VCC".

C：There are a total of an impressive 34 LEDs on the PCB for status display.

What is it

This controller is designed to operate a wide range of CNC machines. It can drive six motors and supports various spindles and lasers—including those with PWM, 485, and 0-10V outputs — compatibility with FluidNC, GRBLHAL, and GRBL1.1f.

Firmware Features

1. For the FluidNC official original firmware, It adopts the pin configuration of FluidNC 6x to ensure enhanced compatibility，FluidNC is very easy to configure. You never have to compile any software. All configuration, upgrading, etc can be done via web browser. we provide yaml example configuration file.

2. For grblHAL and GRBL1.1f, you can configure them directly via the WebBuild platform on grblHAL's official website. This ESP32 flash tool also allows for easy firmware uploading. Moreover, thanks to grblHAL's built-in compatibility mode for GRBL1.1f, you can utilize a wide range of software that requires GRBL1.1f support.

3. You can find relevant information on the official FluidNC and GRBLHAL wiki sites. In parallel, we are optimizing our Simple Tutorial with clear visuals and videos to streamline the learning process.

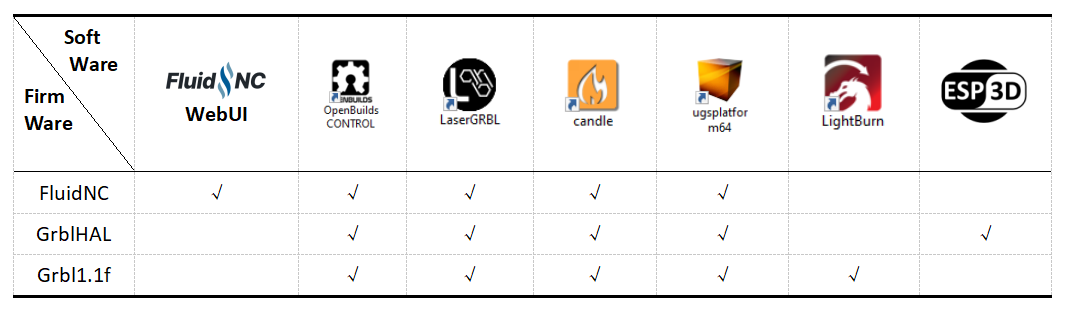

4. Compatible Software vs. Firmware, This table is based on our tests in October 2025. Be aware that software changes might have occurred or there might be some inaccuracies, so you can run your own tests.

Additionally, some software like Estlcam and Easel have specific hardware requirements. You can use our corresponding control boards, which are designed to meet these requirements.

FluidNC Resources

Compatible with the FluidNC official original firmware, we provide yaml example configuration file.

• FluidNC Wiki
• Complete Download Package
• XYZABC Factory Test Config
• XYYZ Coolant Config
• TMC2130 Config (V49PB or later only)
• TMC5160 Config (V49PB or later only)
• Latest Firmware: GitHub Releases

GRBLHAL Resources

Compatible with the GRBLHAL official Web-builder, GRBLHAL can set to GRBL1.1f level.

The PIBot V4 board natively supports the GRBLHAL OLED, as this code was contributed by Luc from France (ESP3D Developer) and tested using the PiBot V4 mainboard.

• grblHAL web - GitHub Repository
• PiBot V4 Web Build - Web Builder
• PiBot V4 GRBLHAL Pinmap - Pinmap File
• Quick Start Guide - PiBot V4 GRBLHAL Quick Start

Key Features

• Integrated ESP32 (Programmed with FluidNC. Includes a generic configuration)
• (6) Motor connectors for external stepper drivers (5v signals). Each motor has separate step, direction and enable signals.
• Inputs for switches (limits, probes, control, etc)
• Communication Mode: USB Cable or Blue Tooth or WIFI
• Spindles (many types supported). Some multi-spindle arrangements are possible like RS485 & laser on the same machine.

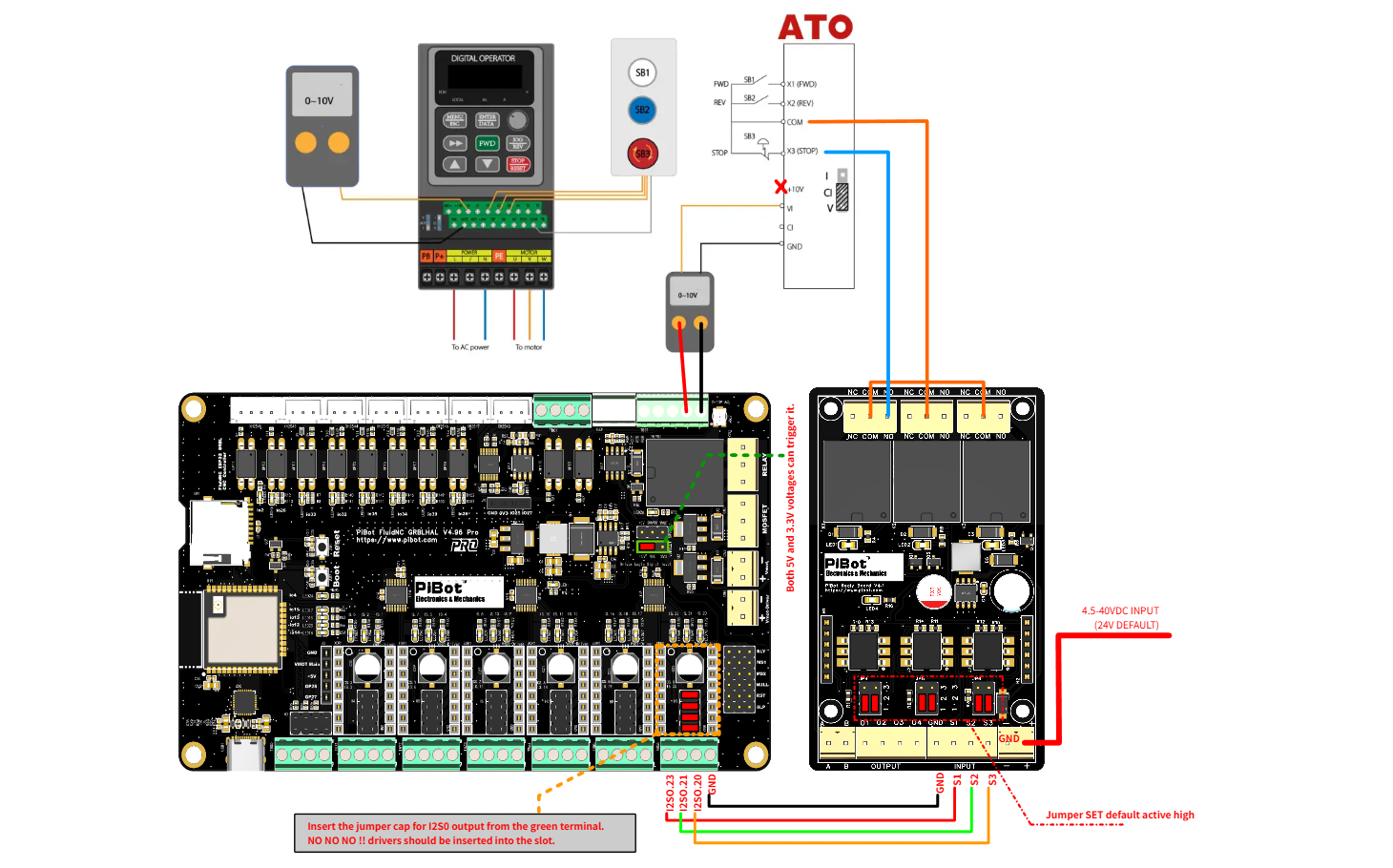

• 0-10V controlled spindles with additional forward and reverse direction signals
• PWM Speed controllers with optional separate enable signals
• Relay (on/off) controlled spindles.
• BESC (Brushless Motor) based spindles

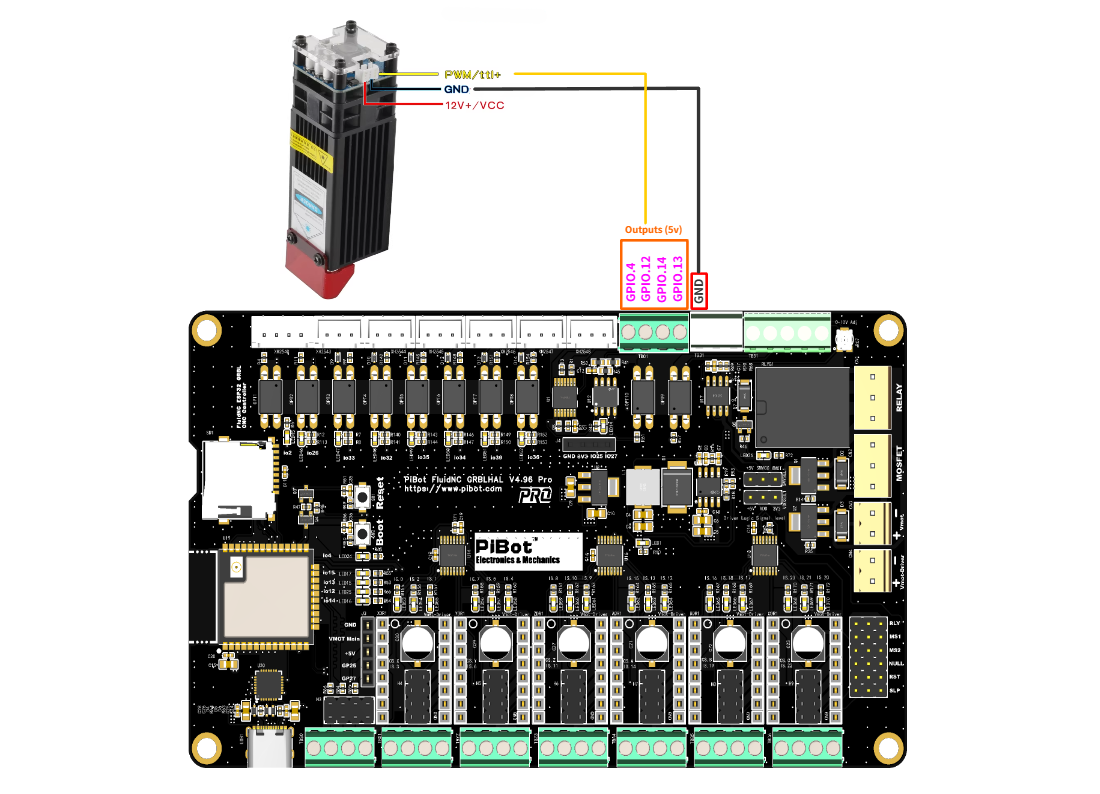

• Lasers with PWM and enable
• Unused spindle 5V outputs can be used for any output function (coolant, etc)
• Micro SD card socket for local storage of gcode files
• Module socket for GPIO extenders and Pendant interfaces.
• Compatible with PiBot Stepper Motor Driver V4
• Compatible with PiBot Isolated Relay Board V4
• Tested the on board TMC2130 Driver
• Tested the Extend TMC5160 Driver

V4.9P-B  Features Compared to Previous Versions:

1. Fits in a 150 * 90 * 40mm box (needs to be purchased separately)

2. Changed output connector to screw terminal method

3. Changed to external antenna for better speed and stability

4. Separate main power supply and stepper motor power supply inputs

5. Uses plugs to change output for drivers or motors

6. Supports onboard TMC2130 and TMC5160 drivers, as well as external TMC5160 drivers (only for 2025 V49PB)

7. CP2102 chips procured from Silicon Labs' official authorized suppliers

8. Genuine ESP32 chips procured from Espressif's official suppliers for greater stability and reliability

V4.96 Pro  Features Compared to V4.9P-B Versions:

1. The board features a 4-layer PCB design with impedance-controlled manufacturing, upgraded component suppliers, and solid capacitors with voltage ratings increased from 35V to 50V.

2. The layout has been optimized with a dedicated power plane and improved SPI signal routing, The layout was inspected by engineers from three separate companies.

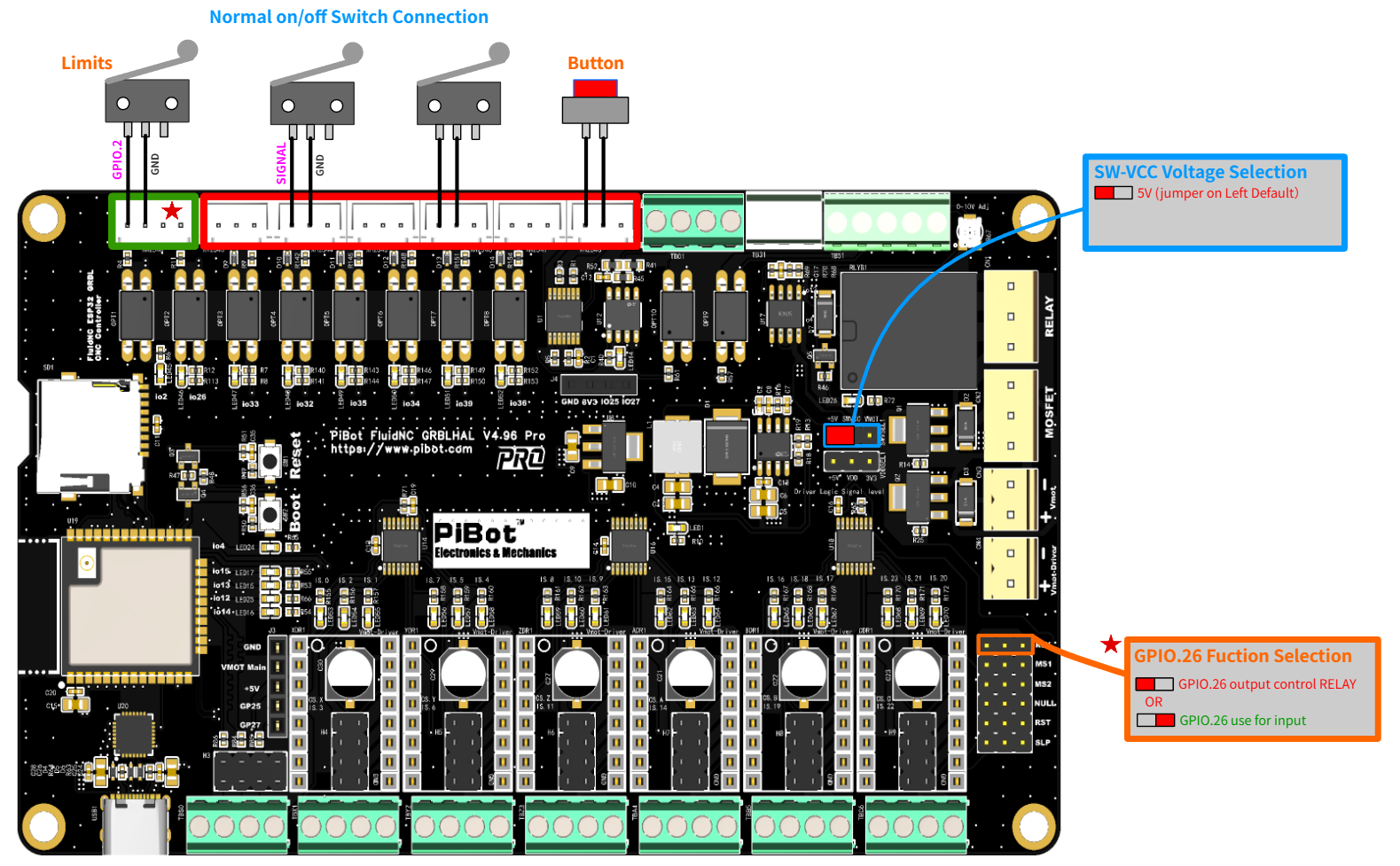

3. The SW_VCC selector supports standard limit switches, medium-precision 5V types, or high-precision industrial-grade 12V/24V limit switches.

4.  All limit switch inputs include diode protection and status LEDs.

5. Signal output indicators have been added for all stepper motors with integrated LEDs.

6. The SPI external port now uses CS.X instead of GPIO5 for more intuitive wiring.

Version History

Thank you all for your support and feedback. We continuously update and improve our products.

• V4.6 (sold out)

• V4.7 (sold out)

• V4.7 B (New! in stock!) - Product Page

• V4.8 (sold out)

• V4.9 A (sold out)

• V4.9 Plus  (sold out)  old documentation for the 2024 V4.9P version -- 2024 Documentation

• V4.9 Plus B  (sold out) current documentation for the 2025 V4.9PB version -- 2025 Documentation

• V4.96 Pro (New！！！！！)

The V49 PLUS and later Versions can adapt a 150 * 90 * 40mm box and use screw terminals

PiBot v4 Series Product Overview Diagram

5mins Simple Setup Tutorial for FluidNC Firmware

This video is from our American partner, dubbed in English

Tips: you can plug on the jumper for test in board without the main power connect, but if your use the main power please take this plug off.

Diagram of Driver Connection

Notice: en dir clk gnd model can not mix with the SPI model

Driver Connection Methods

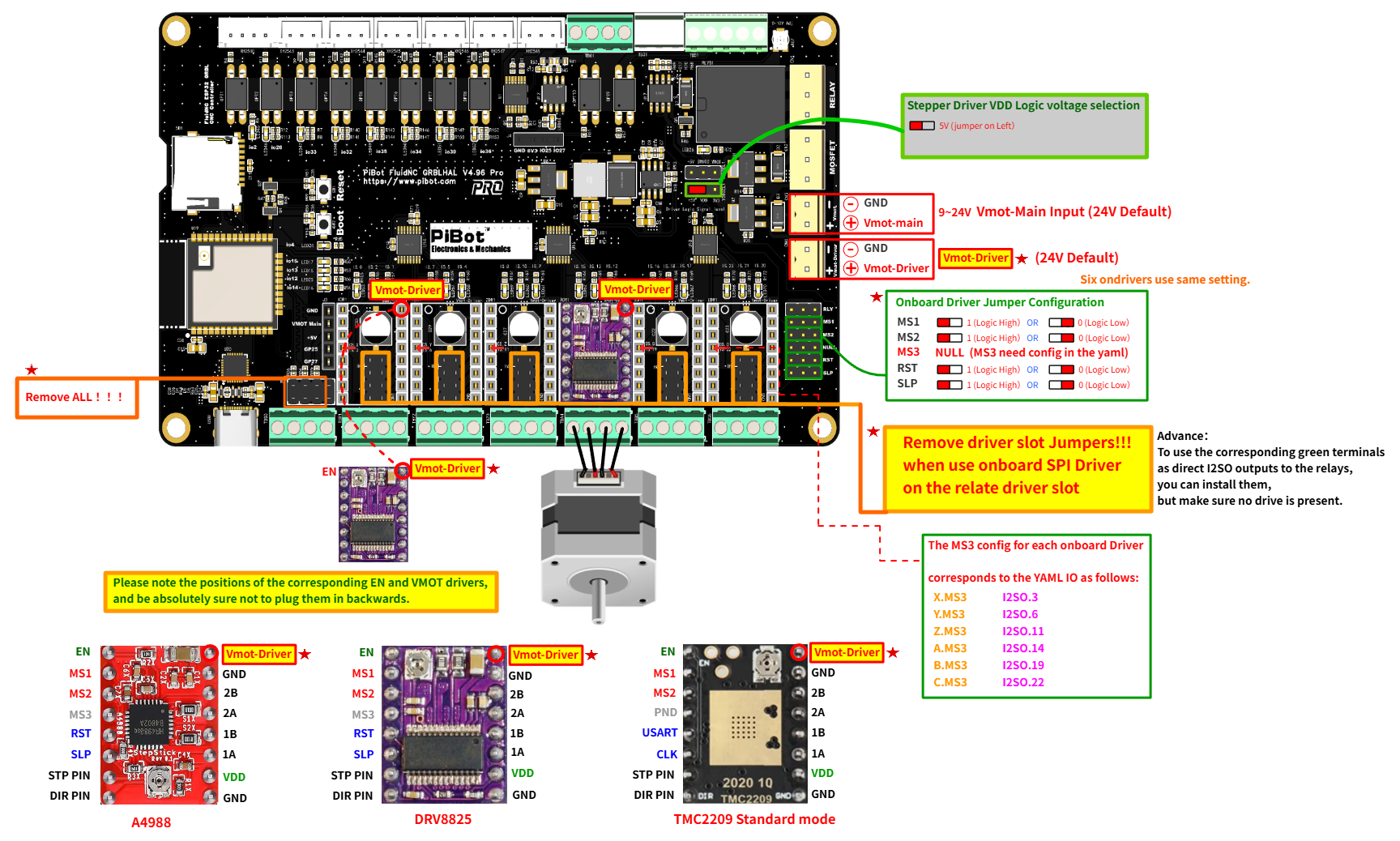

A. Normal Stepstick STP/DIR DRIVER (such as A4988 Drv8825 TMC2208 TMC2209)

• Example YAML configurations:
• XYZABC Factory Test
• XYYZ Coolant

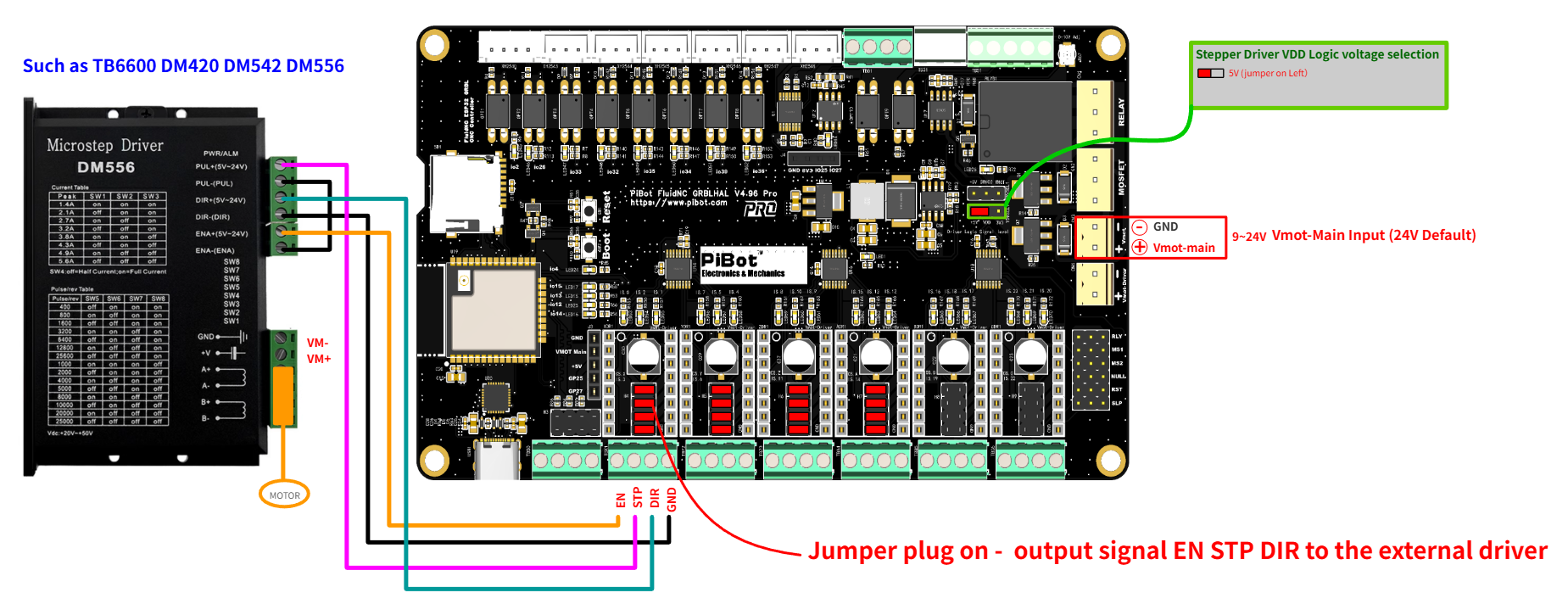

B. Normal Standard STP/DIR DRIVER (such as TB6600 DM420 DM542 DM556)

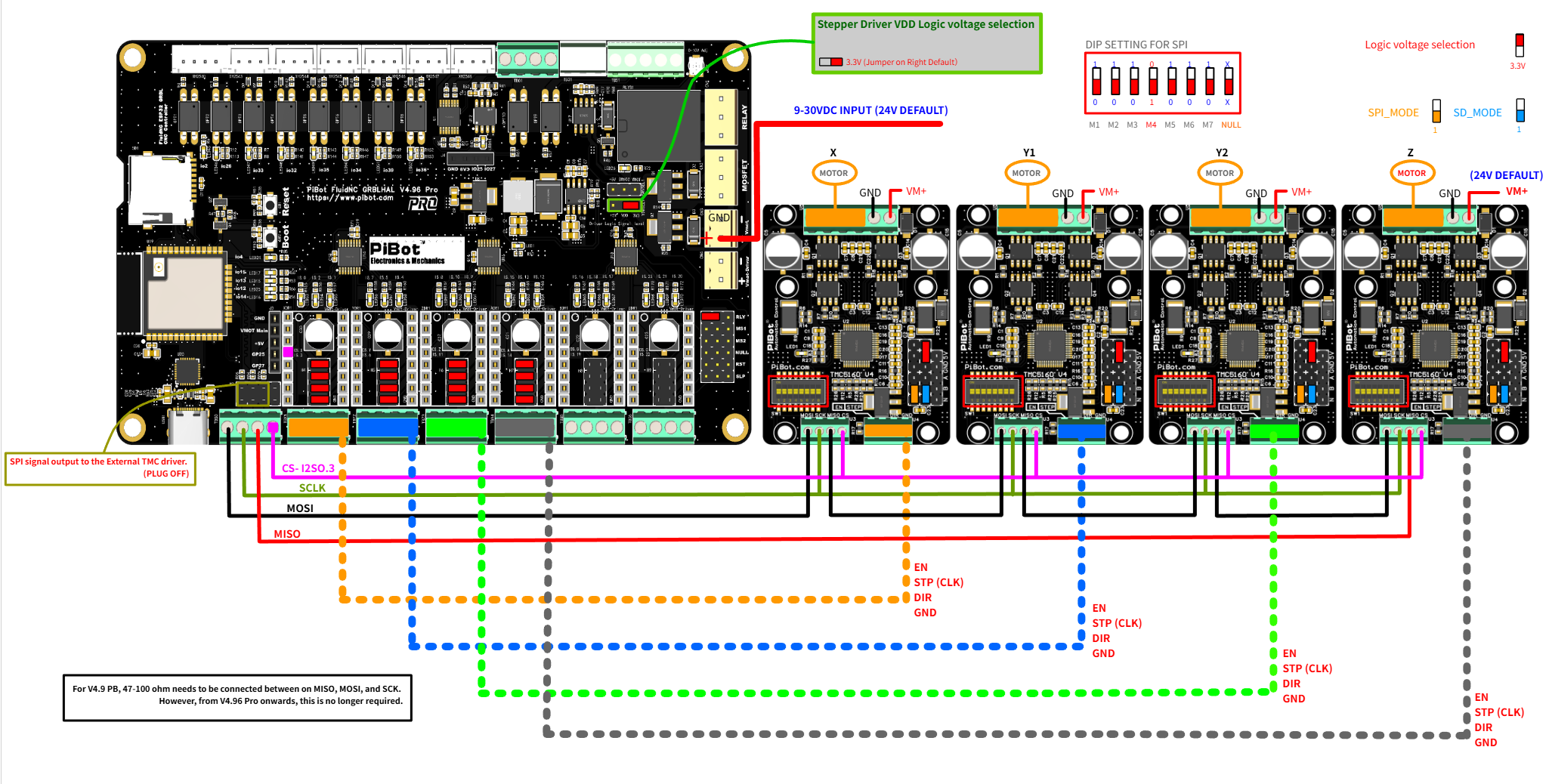

C. SPI TMC EXTERNAL DRIVER (such as TMC5160)

1. VDD set to 3.3V compatible with SPI voltage

2. Don't forget to use 47ohm resistor on mosi miso sck cable in V4.9 PB

• PiBot TMC5160 V4 page - Product Page
• Example YAML: TMC5160 Config (only for V49P-B)
• Test Video -  Google Drive

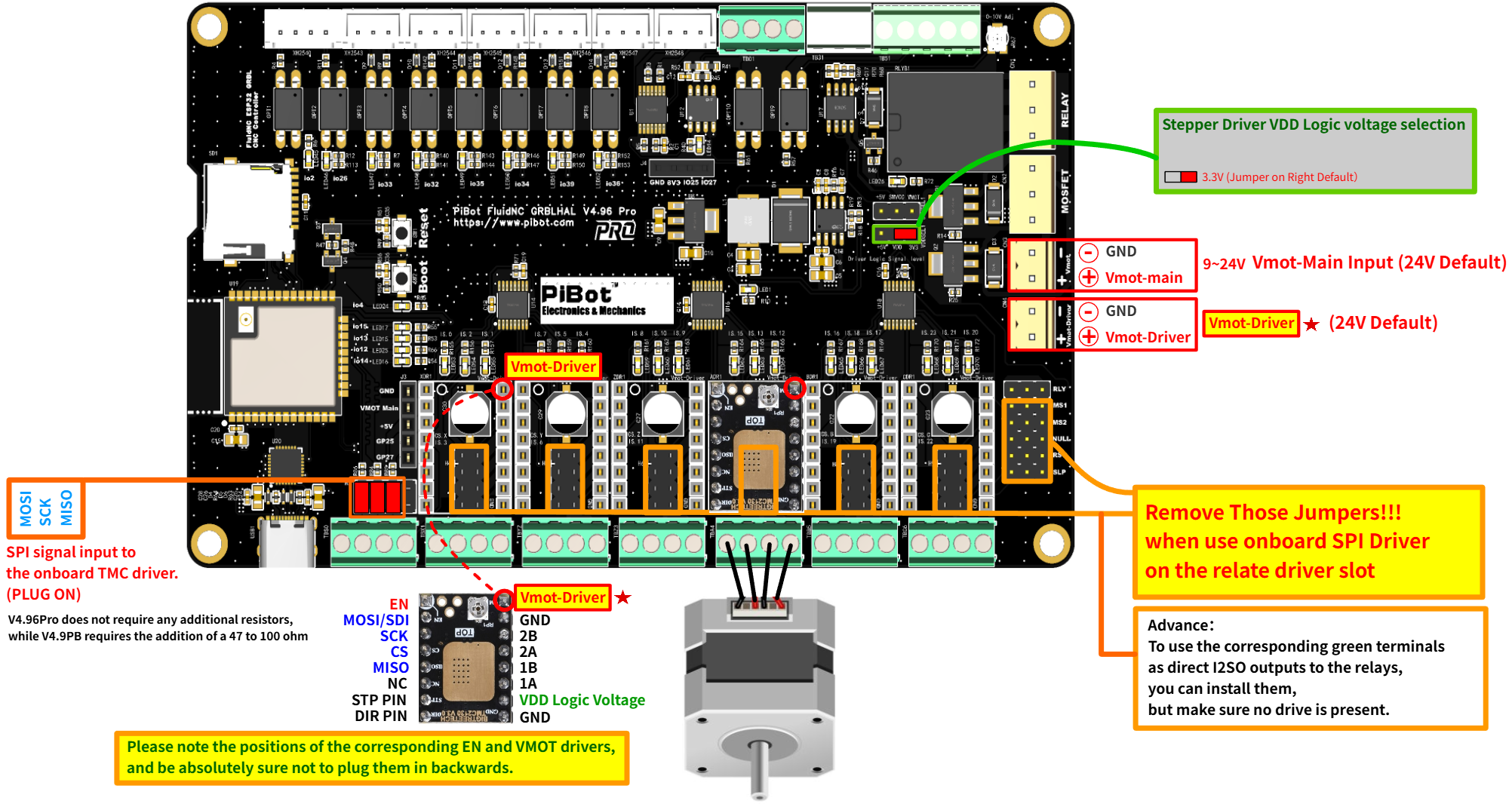

D. SPI TMC ONBOARD DRIVER (such as TMC2130)

USE the independent mode each driver needs its own cs_pin

• Example YAML TMC2130 Config  (only for V49P-B)

IMPORTANT NOTICES:

1. VDD set to 3.3V compatible with SPI voltage

2. It is important that when powering the board, Vmot-Driver is supplied first and then Vmot-main.

3. Don't forget to use 47ohm resistor on mosi miso sck cable in V4.9 PB

ONBOARD DRIVER PLUG BETWEEN THE JUMPERS

This feature tested by Alf from Italy.

Setup Guide (for FluidNC firmware)

Video Tutorials for Step 0 ~ Step 4

Notice：We have Uploaded and tested the Firmware and WebUI before Shipped, If you have OLED, it will display when plugged in.

The V4.9 plus and V4.8A V4.9A is similar config,  different is the v4.9 plus step/dir model onboard driver "MS3 pin" need set in yaml.

Step 0: Preparation - Download Required Files

A. USB driver

B. ESP32 firmware

C. fluidnc web ui files: index.html and ico

D. YAML sample

Click here to download all at once:

• Complete Package Download

If you need the latest software version, please download the latest release version from the fluidnc official website.

Step 1: Install USB Driver

(1) Insert the file A prepared earlier into your computer.

(2) If not installed correctly, install manually.

(3) Open "My Computer," go to Device Manager, and navigate to COM ports.

(4) Update the driver, select "Install from Local," and choose all.

(5) After installation, a CP2102 will be displayed, remember this port number.

Step 2: Upload FluidNC Firmware

(0) Connect via Type-C to your mainboard and power with 12V or 24V (theoretically, 9-30V is acceptable).

(1) Insert file B prepared earlier into your computer.

(2) Double click to open the WiFi version.

(3) If successful, it will install automatically; if not, press the boot button for three seconds and release to trigger automatic download.

(4) After download, select option 5.

(5) Disconnect power, wait for five seconds, then reconnect and restart the MCU.

• Latest Firmware: GitHub Releases

Step 3: Upload Web Interface Files

(1) After restarting the MCU, you'll find fluidnc in your computer's WiFi network.

(2) Connect to it with password 12345678.

(3) Once connected, enter 192.168.0.1 in your browser.

(4) Upload the required files, do not interrupt the process.

(6) After upload, you'll see the option to enter the web-fluidnc interface.

Step 4: Upload YAML Configuration

(1) Inside the interface, click here to proceed.

(2) Upload the YAML file you need for testing purposes. After testing, modify it according to your CNC requirements using this template.

(3) Click "Set" when done.

(3) Here, you can also configure your LAN access, refer to details.

(4) Disconnect power, wait for five seconds, then reconnect and restart the mainboard.

(6) The mainboard is now ready to work. If you have OLED, you can see basic information.

Example YAML Files:

• XYZABC Factory Test
• XYYZ Coolant
• TMC2130 Config (V49P-B only)
• TMC5160 Config (V49P-B only)

Video Tutorials for Step5 (1)

Video Tutorials for Step5 (2~3)

Step 5: Hardware Testing Examples

(0) Mainboard pinout diagram.

(1) Relay // PWM // 0-10V output test example in default YAML configuration (use webUI test)

Testing Procedures:

A. Open the webUI page.

B. Click the unlock button.

C. Enter M6 to display the default tool, T0 as a relay.

D. Enter M6 T0 to test PWM.

E. Enter M6 T1 to test PWM.

F. Enter M6 T2 to test Laser.

G. Enter M6 T3 to test 0-10V.

H. Enter M6 T4 to test 485.

(2) Internal drive schematic (using the YAML provided as a sample)

A. Stepper motor drive pin jumper settings as shown in the diagram:

B. V4.9P NOW Only support "en dir clk gnd model", if you use TMC5160 please set to "en dir clk gnd" model,

C. V4.9PB  support "en dir clk gnd model" and SPI model for TMC2130 OR TMC5160

YAML EXAMPLE:

stepstick:
    step_pin: I2SO.10
    direction_pin: I2SO.9
    disable_pin: I2SO.8
    ms3_pin: I2SO.11:high

(3) External drive schematic

A. It is recommended to use an independent power supply for external power.

B. Compatible with hardware REV2.3 REV4.0 relay.

C. Compatible with hardware REV2.3 TB6600 or DM420 driver etc.

YAML EXAMPLE:

standard_stepper:
    step_pin: I2SO.2
    direction_pin: I2SO.1
    disable_pin: I2SO.0:low

Additional Resources

Board Dimensions:

Schematic Diagrams:

V4.9PB Schematic (fixed SPI pin bugs from V4.9P):

V4.9P Schematic:

Antenna Information:

External Antenna

The v4.9PB has no onboard antenna, so it needs external antenna. If removed, WiFi signal may be lost.

Accessories:

• Electronic Box: 150×90×40mm Box
• OLED Display: 0.96" OLED
• Relay Board: Isolated Relay Board V4
• CNC Pendant: Pendant V4.0
• TMC5160 Driver: SilentStep TMC5160 V4

Shipping List

• PiBot FluidNC GRBL CNC Controller Board Rev4.9 Plus B × 1
• Jumpers Set x 1
